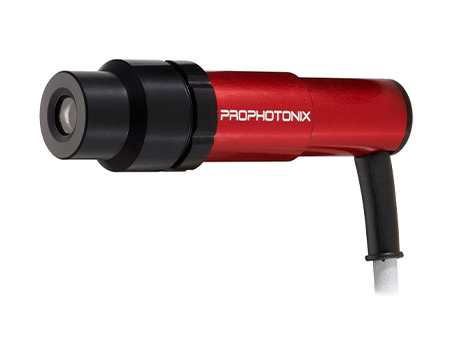

PROdigii Digital Laser Module - Precise Control, Exceptional Stability

PROdigii digital laser module has been designed to deliver outstanding wavelength stability and thermal management in even the most challenging operating environments. The high-performance digital laser module can be controlled and monitored through a digital RS485 communication interface. The interface enables easy integration and provides in-service system function monitoring.

Download the DatasheetContact Us

Key Features:

  • Wavelengths: 375nm, 405nm, 450nm, 520nm, 638nm, 660nm, 808nm, 905nm, and 940nm
  • Compact, high performance, digital laser module
  • RS485 intelligent control and monitoring
  • Integral thermal management
  • Uniform line, elliptical spot or diffractive patterns available
  • Output power up to 500mW (CW); 1W (pulsed)

Key Applications:

  • 3D measurement especially in high ambient light or temperature conditions
  • High precision alignment
  • Chemical and biomedical analysis
  • High speed automated inspection
  • Robotics and Gesture Recognition
  • LiDAR
  • UV Curing

PROdigii Features

In addition to the RS485 interface, PROdigii incorporates integral thermal management providing exceptional output wavelength stabilization and enhancing laser diode life through superior output power control and maintaining consistent power levels.

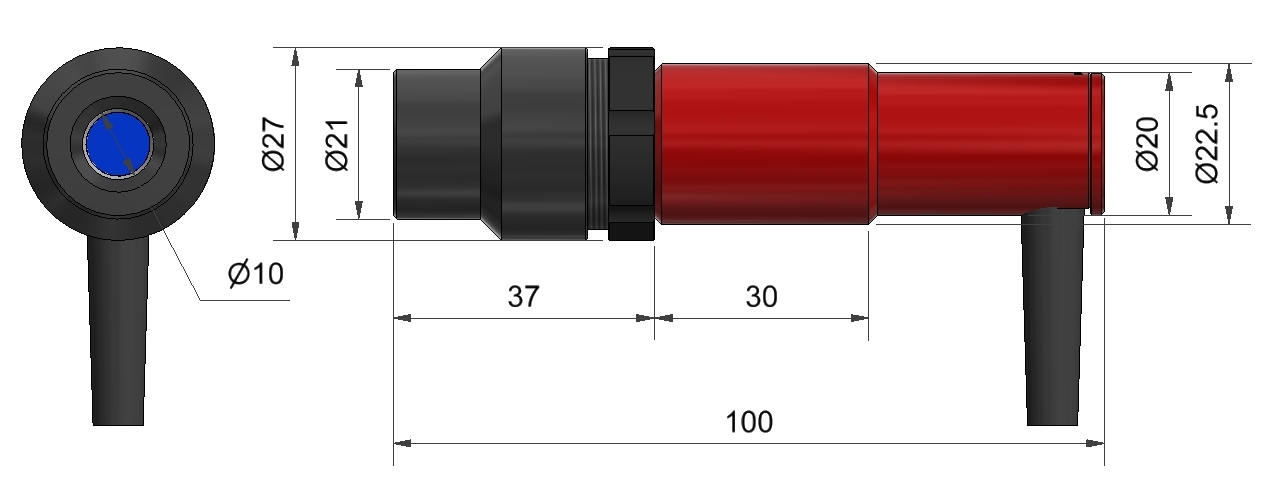

The compact, cylindrical form factor and custom mounting options make for straightforward incorporation into OEM products and machine vision systems.

To configure your PROdigii digital laser module and download a CAD model, click the button below.

Configure and Download CAD Model

PROdigii Laser

High Performance Laser Diode Module

Part Number: PD-375-L01-AF-10

Download CAD file
The CAD file failed to generate. You could wait a short while and try again. Or perhaps look for a different file format.TRY AGAINSELECT NEW FORMAT


Please wait while data loads…


Your CAD file is being generated.

This process usually takes less than 1 minute.

Digital Laser Module Options

The digital laser module is available in a range of wavelengths from 375nm to 940nm with user-defined output power profiles at up to 500mW, continuous wave or 1W, pulsed, for high-speed, precise image capture.

The digital laser module can be configured as a uniform line generator for 3D measurement applications and with a focused elliptical output beam for analytical, spectroscopic, or high-precision alignment applications. Diffractive pattern options are also available.

Download DatasheetContact Us

PROdigii Digital Laser Module Applications

The PROdigii digital laser module is an ideal solution for high-precision alignment, high-speed automated inspection, 3D measurement especially in high ambient light or temperature conditions, robotics and gesture recognition, LiDAR, chemical and biomedical analysis, spectroscopy and UV curing.

Custom Digital Laser Module for Wheel Inspection in the Rail Industry

ProPhotonix recently developed a customized high performance PROdigii laser for an advanced wheel monitoring system for use in a rail inspection system. Accuracy and reliability are critical to ensure safety in these challenging environments. ProPhotonix’ engineers worked to deliver a high uniformity IR laser in a compact package with digital control and monitoring enabling realtime feedback to the system. Watch the video to learn more.

Rail Wheel Inspection Case Study

Wheels are the most loaded components of railway vehicles and are subject to continuous wear and tear. In order to ensure their safety, regular maintenance is needed to check that they are compliant with international safety standards. This case study details the development of a custom PROdigii laser to allow for a more accurate measure of physical conditions such as: wheel thickness, tread hollowing and tread wear.

Download Case Study


New Whitepaper

Key Considerations for Specifying High Performance Lasers

A high-performance laser should deliver more than high output power. When optimized to your application, a high-performance laser module can ease integration, maximize results and deliver a competitive advantage for your business. This paper will discuss key considerations in ensuring a high-performance laser for your system.

The ‘Key Considerations for Specifying High-Performance Laser Modules’ Whitepaper discusses:

  • Delivering high power laser modules
  • Ensuring high stability optical output
  • Digital control for monitoring performance
  • Range of Application examples
Download Whitepaper

Need help to optimize for your application?

For comprehensive technical support. Talk to us.

Contact UsContact Us

Bernhard Russell

Inside Sales

Andrea Gregorio

Inside Sales

Laser Diode Technology Experts

25 years of experience in laser diode technology allows us to deliver high-quality laser diode modules to meet specific requirements.

A Partnership Approach

We work in partnership with our customers to ensure the best solution configured or custom-designed for your application needs.

Excellent Service

We deliver reliable, high-quality products, responsive technical support, and maintain high service levels.

Other Products in the Range:

  • 3D Pro Laser

    The 3D PRO laser is designed for easy integration into machine vision applications. It delivers high performance and high uniformity from a compact form factor. The 3D PRO laser is available with a customer-specified fixed focus.

    Discover >>
  • 3D PRO Mini

    As the name suggests, the 3D PRO Mini is extremely compact at just 10mm in diameter. Designed for machine vision applications where space is restricted, these lasers offer excellent performance from a compact package.

    Discover >>
  • Adjustable Focus 3D PRO

    The Adjustable Focus 3D Pro allows the user to adjust the focus to suit application requirements. Built on the same compact platform as the 3D PRO the Adjustable Focus 3D PRO is 19mm in diameter.

    Discover >>
