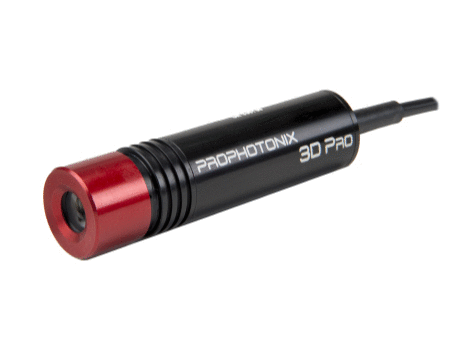

Structured light laser designed specifically for machine vision.

The 3D PRO™ Laser has been designed specifically for the exacting requirements of 3D imaging applications. The laser modules provide excellent performance from a compact cylindrical form factor for easy integration into machine vision applications.

Download DatasheetContact Us

Key Features:

  • Compact, cylindrical form factor for easy mounting
  • Excellent uniformity
  • Line widths of 40 μm at 120 mm
  • Available options include: wavelengths, power levels,
    fan angles, intensity control and strobe

Key Applications:

  • 3D Machine Vision
  • Dimensional scanning
  • High precision alignment, pointing, positioning
  • Automated inspection

Compact for Ease of installation

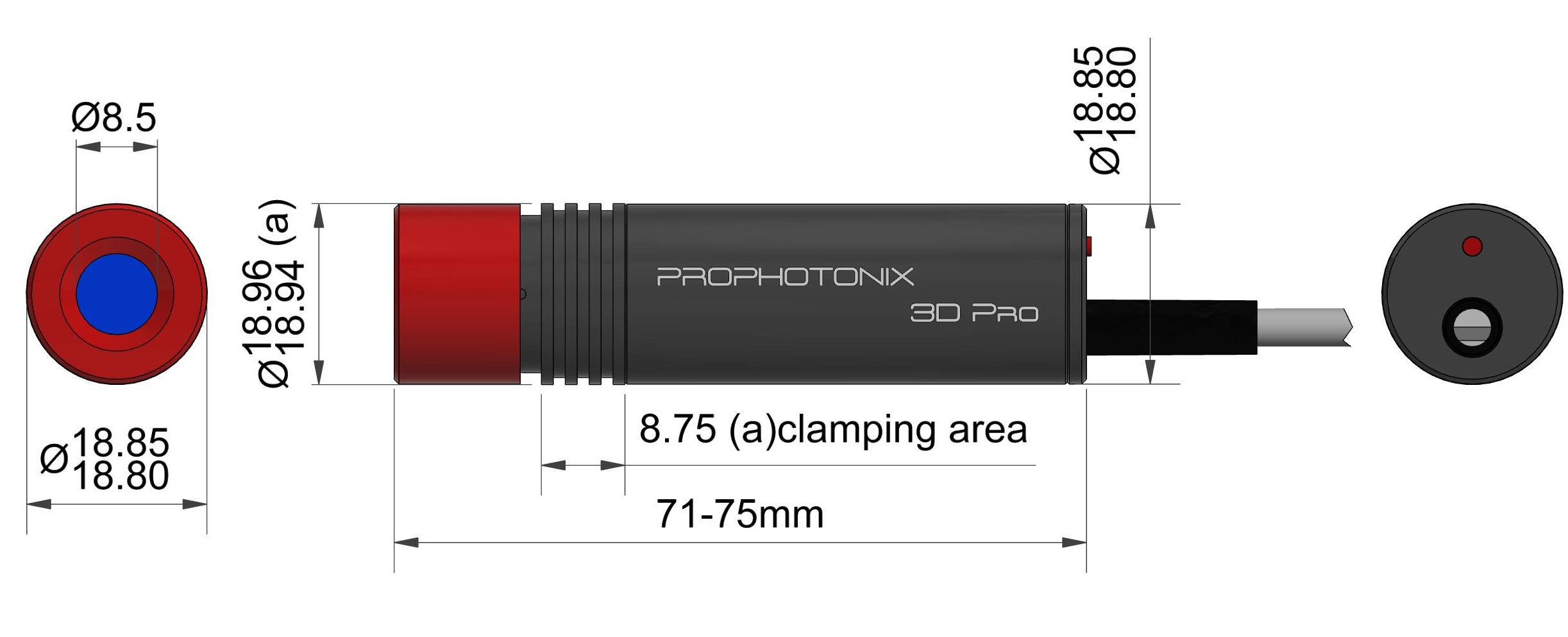

The 3D PRO™ Laser is 19mm in diameter, compatible with the majority of existing Machine Vision systems. and providing ease of integration into new systems. The laser is available with a customer-specified fixed focus. An Adjustable Focus 3D PRO is also available.

Ideal For High Accuracy Inspection Applications

The 3D PRO™ Laser offers excellent uniformity with line widths down to 40μm at 120mm which is ideal for inspection applications that demand a high degree of accuracy. The series is available with output powers up to 100 mW and fan angles between 10° and 90°. Wavelengths range from 520nm to 850nm and include 635nm and 660nm. Electronic options consist of TTL modulation up to 100kHz and Analogue power control for intensity adjustment. The 3D PRO™ Laser range is available in a wide variety of line and diffractive optic options.

Download the datasheetContact Us

Ideal for a wide range of applications

The 3D PRO™ Laser’s high performance makes it ideal for applications such as 3D machine vision, dimensional scanning, high-precision alignment, pointing and positioning, as well as high-speed automated inspection.

Configurable to your Application’s Needs

The 3D PRO™ Laser is configurable to your application needs. To configure your 3D PRO™ Laser and download a CAD model, click the button below.

Configure and Download CAD Model

3D PRO™ Laser

Structured Light Laser Diode Module

Part Number: D-375-035-0025-L01-S-10-S-S-2

Download CAD file
The CAD file failed to generate. You could wait a short while and try again. Or perhaps look for a different file format.TRY AGAINSELECT NEW FORMAT


Please wait while data loads…


Your CAD file is being generated.

This process usually takes less than 1 minute.



Need help to optimize for your application?

For comprehensive technical support. Talk to us.

Contact UsContact Us

Bernhard Russell

Inside Sales

Andrea Gregorio

Inside Sales



Laser Diode Technology Experts

25 years of experience in laser diode technology allows us to deliver high-quality laser diode modules to meet specific requirements.

A Partnership Approach

We work in partnership with our customers to ensure the best solution configured or custom-designed for your application needs.

Excellent Service

We deliver reliable, high-quality products, responsive technical support, and maintain high service levels.

Other Products in the Range:

  • 3D PRO Mini

    As the name suggests, the 3D PRO Mini is extremely compact at just 10mm in diameter. Designed for machine vision applications where space is restricted, these lasers offer excellent performance from a compact package.

    Discover >>
  • Adjustable Focus 3D PRO

    The Adjustable Focus 3D Pro allows the user to adjust the focus to suit application requirements. Built on the same compact platform as the 3D PRO the Adjustable Focus 3D PRO is 19mm in diameter.

    Discover >>
  • PROdigii Digital Laser Module

    The PROdigii digital laser module has been designed to deliver outstanding wavelength stability and thermal management in even the most challenging operating environments.

    Discover »
