Extremely Compact Laser Module Packed with Functionality

From just 8mm in diameter, the Digital Compact Laser allows you to benefit from digital monitoring and control functionality even when the space available is limited. This exceptionally compact, high-performance laser can be controlled and monitored through a digital RS232 communication interface. The Digital Compact Laser allows output power, pulse duration, and pulse frequency to be adjusted as well as monitoring the laser’s performance. With this laser, system designers can provide a higher-performance product to their customers.

Download DatasheetContact Us

Key Features:

• Exceptionally Compact, High Performance, Digital Laser Module
• RS232 Intelligent Control and Monitoring

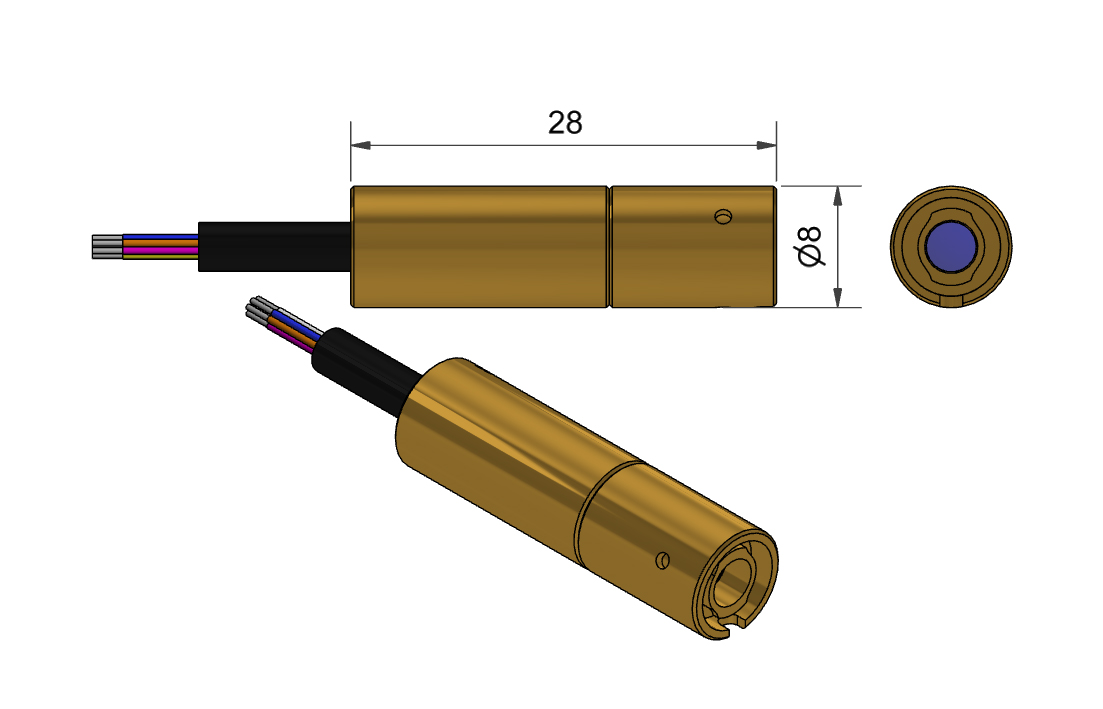

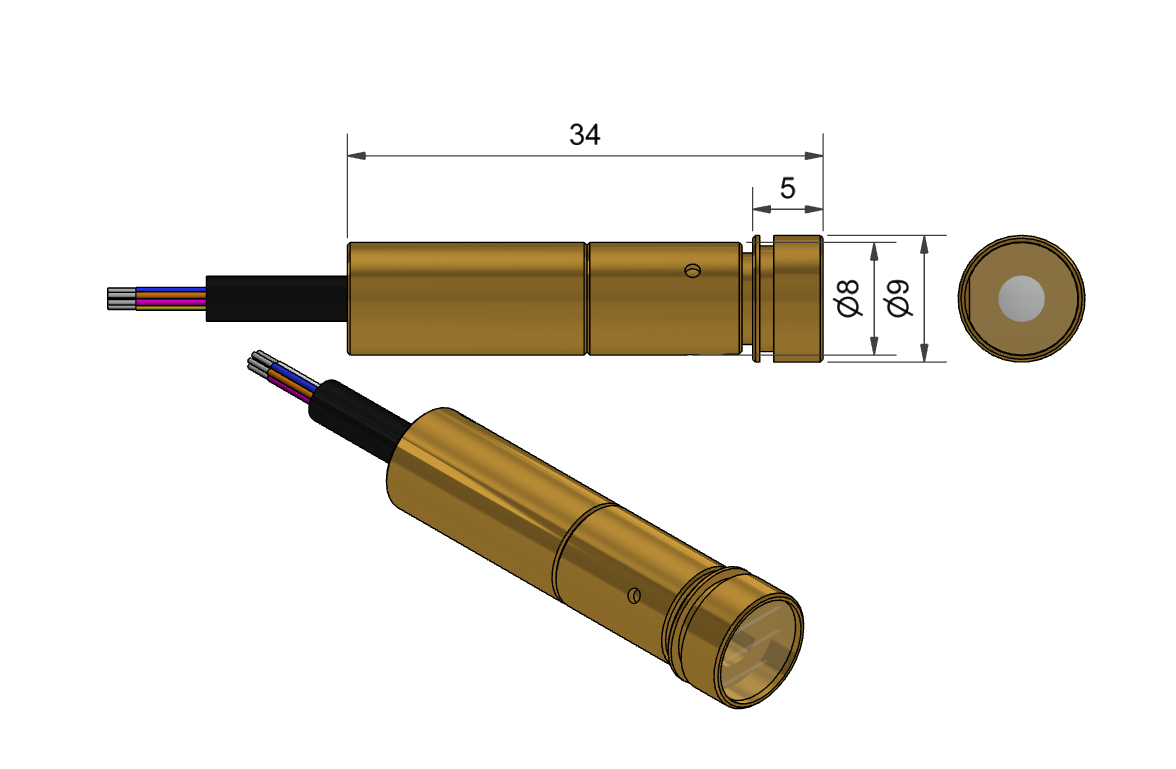

• Elliptical Beam, Line & Cross Generating Optics Available
• CW or Modulation Capabilities
• Excellent Boresighting <0.5°
• High Reliability
• Range of wavelengths, output powers, and mechanical options available

Key Applications

• Precision Industrial Alignment
• Patient Positioning
• Particle Detection and Measurement
• Targeting
• 3D Measurement
• High-Speed Automated Inspection

Compact, Plug and Play, Digital Laser with a Wide Range of Options Available.

The Digital Compact Laser is available at 520nm, 635nm, and 650nm with standard optical output powers of 0.9mW and 4mW. Other wavelengths and output powers are available on request. The Digital Compact Laser offers excellent boresighting (<0.5°) for high accuracy and ease of integration. Specifiers can choose from elliptical beam, line, and cross-generating optics. A hard anodized aluminum housing for electrical isolation is also available. These lasers are extremely efficient and reliable and are available with CW or modulation options. The laser modules can be battery-operated via a handheld device due to their low current requirements.

Download DatasheetContact Us

Ideal for a wide range of applications

The Digital Compact laser offers increased flexibility and control in applications such as precision industrial alignment, patient positioning, particle detection, targeting, 3D measurement, and high-speed automated inspection.

Configurable for your Application’s Needs

The Digital Compact Laser is configurable to your application needs. To configure your Digital Compact laser and download a CAD model, click the button below.

Configure and Download CAD Model

Digital Compact
