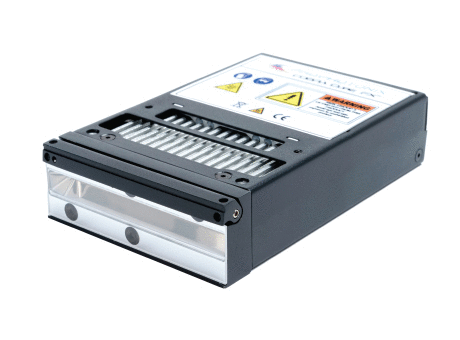

Compact UV LED Curing System delivering 6W/cm2

COBRA Cure FX1 is a compact, reliable UV LED Curing System, delivering up to 6W/cmand built with Chip-on-Board LED technology for high intensity and uniformity. Offering stable, reliable curing over a long lifetime, this UV lamp is ideal for pinning and UV curing applications in printing and 3D printing.

Download DatasheetMake an Enquiry

Key Features

  • Compact LED Curing System
  • Delivers up to 6W/cm2 or 6.5J/cm2
  • Field replaceable window
  • Stackable
  • Various optical configurations available
  • Available in 365nm, 385nm, 395nm and 405nm
  • Multi-wavelength options also available

Key Applications

  • UV Curing of:
    • Inks
    • Coatings
    • Adhesives
  • Pinning of Inks
  • 3D Printing

Reliable, Even UV Curing

Designed for ease of integration and lasting performance in the field, COBRA Cure FX1 offers high intensity with excellent uniformity due to its chip-on-board LED Technology. This ensures a solid, reliable cure. COBRA Cure FX1′ compact form factor, coupled with its innovative features, provide end users with excellent performance and easy maintenance.

Built in-house with Chip-on-Board LED Technology

Built on the established COBRA platform, COBRA Cure FX1 is designed utilizing Chip-on-Board LED technology. ProPhotonix build the light engine used to power the COBRA Cure FX series in-house enabling the maximum level of control of each LED ensuring optimum LED density to deliver powerful, uniform UV LED light. The COBRA Cure FX1 also features a field replaceable window and a scalable design for ease of maintenance.

The COBRA Cure FX1 is configurable to your application needs. To configure and download your COBRA Cure FX1 CAD model, click the button below.

Configure and Download CAD Model


UV LED Curing System

Part Number: FX1-R-0077-405-C1-S-A

Download CAD file
The CAD file failed to generate. You could wait a short while and try again. Or perhaps look for a different file format.TRY AGAINSELECT NEW FORMAT

Please wait while data loads…

Your CAD file is being generated.

This process usually takes less than 1 minute.

UV Curing lamp

Field Replaceable Window

Offering all the benefits of a UV LED system, COBRA Cure FX1’ innovative design reduces downtime by incorporating a field-replaceable window to ensure maximum performance throughout the lifetime of the lamp. This window can be easily replaced by non-technical personnel and does not require any special tools.

Optical Options

The lamps’ optical output can be specified to match your application requirements. Options include:

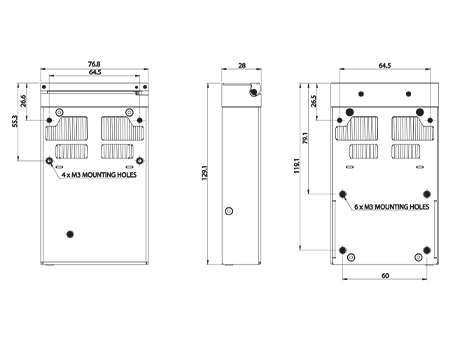

  • A collimated lens (< 10° divergence) typically utilized in pinning applications ensuring low risk of curing at the print head.

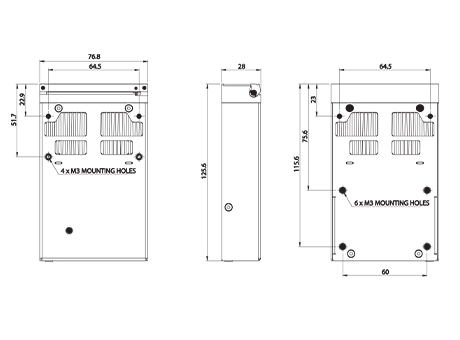

  • The D4 optical head produces median dose levels and curing profile (40° divergence).

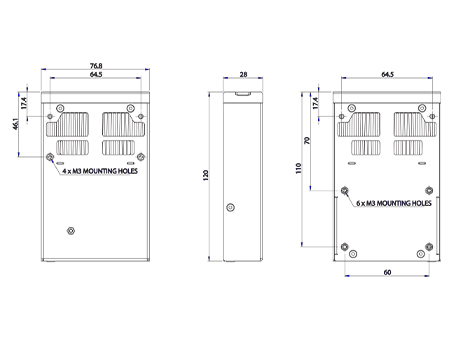

  • The DW (Divergent Wide) optical head – the widest illumination angle (110° divergence) producing the highest intensity and dose levels.

Stackable Design

COBRA Cure FX1 features edge to edge illumination for a stackable UV LED Curing System with minimal drop in intensity and dose uniformity across the line. Multiple mounting options have been incorporated to enable a wide range of working distances. The COBRA Cure FX1 has been independently IEC, CE and UL certified.

Download the DatasheetContact Us

Market Leading Product Performance

UV LED Curing Systems are designed and built to deliver maximum performance throughout the lifetime of the products.

Flexibility to Adapt to Your Needs

Flexibility to configure or customize your product to your application requirements and flexible ongoing support to meet your business needs.

A Complete Solution Provider

We take a long-term view of customer relationships supporting you from concept to completion as well as with day to day business needs.

Need help to optimize for your application?

For comprehensive technical support. Talk to us.

Contact UsContact Us

Bernhard Russell

Inside Sales

Andrea Gregorio

Inside Sales

Other products in the range

  • New COBRA Cure Mini

    6W/cm² Compact, Light form factor UV LED curing system offers a cost-effective solution for high-speed single and multi-pass printers.

    View Details
  • COBRA Cure FX1

    Compact UV LED Curing System built with Chip-on-Board LED technology for high intensity and uniformity.

    View Details
  • COBRA Cure FX2

    Compact, stackable, UV LED Curing System offering up to 8.4 W/cm2 or 17.5 J/cm2

    View Details
  • COBRA Cure FX3

    Compact, stackable, UV LED Curing System offering up to 20W/cm2 of highly uniform UV light.

    View Details
