Seamless Integration, Excellent Uniformity

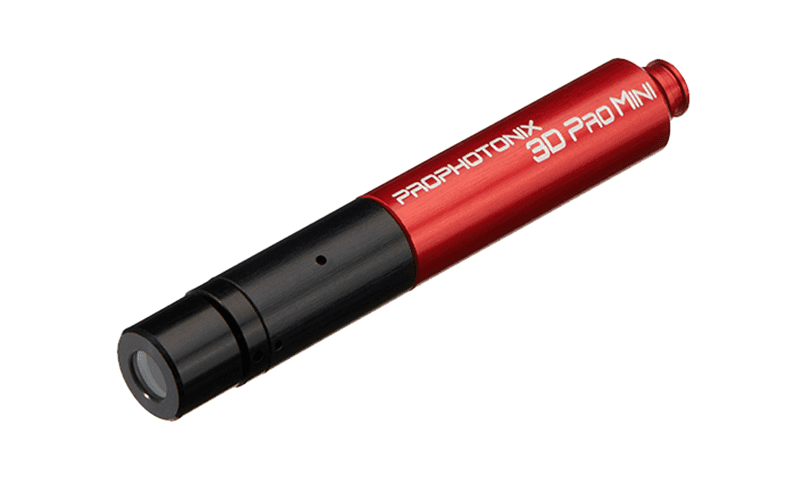

Designed specifically for 3D imaging applications where space is restricted, the 3D PRO™ Laser Mini offers high performance from a compact 10mm diameter package. Available in a range of wavelengths, powers, and optical options, this laser offers a complete solution.

Downoad the DatasheetContact Us

Key Features:

  • Compact, 10mm diameter cylindrical housing
  • Lightweight
  • Wavelengths from 635nm to 850nm
  • Excellent uniformity
  • Line width of 40μm at 120mm

Key Applications:

  • 3D measurement
  • Dimensional scanning
  • High precision alignment, pointing and positioning
  • Automated inspection

Compact and Lightweight Structured Light Laser

The compact, lightweight 3D PRO™ Laser Mini has been designed specifically for machine vision applications where space is restricted. These structured light lasers have a compact cylindrical form factor for easy integration into existing applications and new installations where space is an issue.

Excellent Uniformity and a Wide Range of Options

The 3D PRO™ Laser Mini is 10mm in diameter and is available with a customer-specified fixed focus. 3D PRO™ Laser Mini offers excellent uniformity with line widths down to 30μm at 120mm which is ideal for inspection applications that demand a high degree of accuracy. They are available with fan angles between 10° and 60°. Wavelengths range from 635nm to 850nm. The 3D PRO™ Laser Mini range is available in a wide variety of line and diffractive optic options.

Download the DatasheetContact Us

Ideal for a wide range of applications

The 3D PRO™ Laser Mini’s high performance makes it ideal for applications such as 3D measurement, dimensional scanning, high-precision alignment, pointing and positioning, as well as automated inspection.

Configurable to your Application Needs

The 3D PRO™ Laser Mini is configurable to your application needs. To configure your 3D PRO™ Laser Mini and download a CAD model, click the button below.

Configure and Download CAD Model

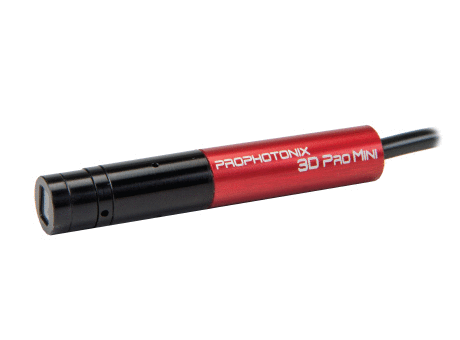

3D PRO™ Laser Mini

Compact Structured Light Laser

Part Number: 3M-635-01-0025-L01-S-10-S-S-2

Download CAD file
The CAD file failed to generate. You could wait a short while and try again. Or perhaps look for a different file format.TRY AGAINSELECT NEW FORMAT


Please wait while data loads…


Your CAD file is being generated.

This process usually takes less than 1 minute.



Need help to optimize for your application?

For comprehensive technical support. Talk to us.

Contact UsContact Us

Bernhard Russell

Inside Sales

Andrea Gregorio

Inside Sales

Laser Diode Technology Experts

25 years of experience in laser diode technology allows us to deliver high-quality laser diode modules to meet specific requirements.

A Partnership Approach

We work in partnership with our customers to ensure the best solution configured or custom-designed for your application needs.

Excellent Service

We deliver reliable, high-quality products, responsive technical support, and maintain high service levels.
