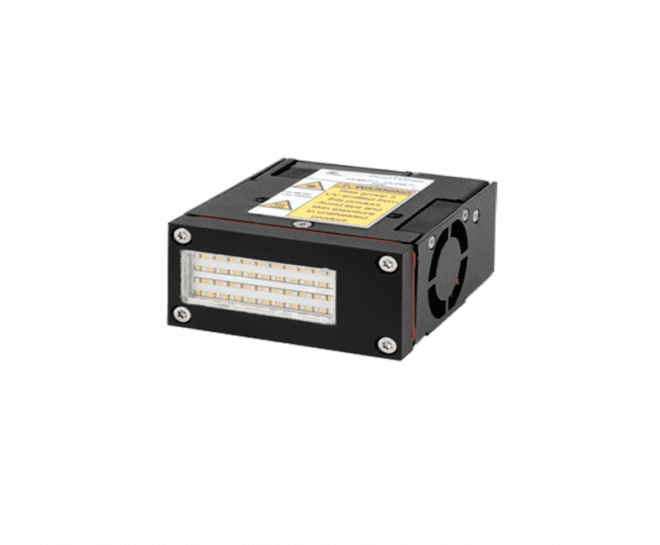

Low Weight, Compact, UV LED Curing System delivering up to 6W/cm2

Designed to maximize intensity and dose within a compact, light form factor, COBRA CureTM Mini offers a cost-effective solution for high-speed single and multi-pass printers where installation space is restricted and weight is a concern.

Download DatasheetContact Us

Key Features:

  • Compact, Fan-Cooled LED Curing Lamp: 33.4mm x 57mm x 30mm
  • Weight: less than 175g
  • Delivers Intensities of up to 6W/cm2 at 2mm
  • Provides a Maximum Dose of 9J/cm2 at 2mm
  • Illumination Area: 36mm x 13.5mm
  • Linear Intensity Control Options
  •  365nm, 385nm and 395nm

Key Applications:

  • UV Curing of :
      • Inks
      • Coatings
      • Adhesives
  • 3D Printing

Low Weight, Compact Form Factor + High Performance

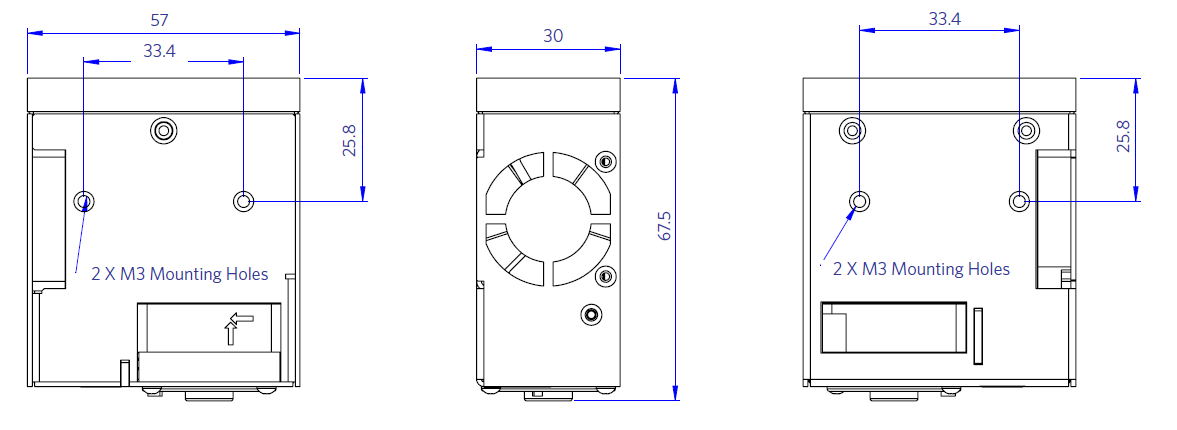

This innovative UV LED Curing System offers the high performance of our COBRA Cure products in a more compact package. Control electronics are housed separately achieving a much more compact light head module measuring just 33.4mm x 57mm x 30mm (1.3’ x 2.24’ x 1.18’). Weighing less than 175gm (0.4 lb), COBRA Cure Mini’s light head is suitable for compact translation systems, providing ease of installation without any compromise on performance.

Expert LED Array Design & Mechanical Engineering

With COBRA Cure Mini, ProPhotonix has utilized its expertise in Chip-on-Board LED array design and mechanical engineering to deliver the optimum solution for applications where space and weight are restricted but higher intensity and dose levels are required. COBRA Cure Mini delivers intensities up to 6W/cm2 and a factory set dose of up to 9 J/cm2 at 2mm across an illumination area of 36mm x 13.5mm (1.42‘ x 0.53‘).

The COBRA Cure Mini is configurable to your application needs. To configure and download your COBRA Cure Mini CAD model, click the button below.

Configure and Download CAD Model

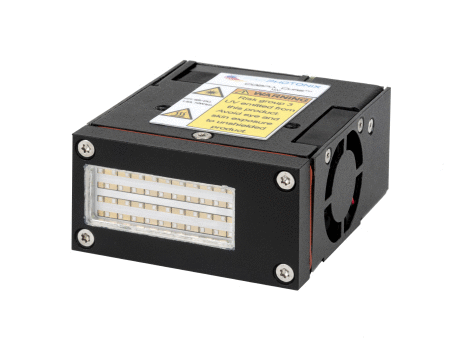

COBRA Cure™ Mini

UV LED Curing System

Part Number: CCM1-35-365-DW-A-01

Download CAD file
The CAD file failed to generate. You could wait a short while and try again. Or perhaps look for a different file format.TRY AGAINSELECT NEW FORMAT


Please wait while data loads…


Your CAD file is being generated.

This process usually takes less than 1 minute.

3d automated printing machine working - Prophotonix UV LED Curing System

Intensity, Dose and Lifetime Maximized

ProPhotonix builds the light engine used to power the COBRA Cure FX series in-house and has engineered each step of the design and manufacturing process to ensure that intensity, dose as well as lifetime are maximized in the COBRA Cure Mini.

Compact Solution for a range of applications

COBRA Cure Mini offers an ideal solution for UV curing of inks, coatings, and adhesives as well as 3D printing applications.

Download the DatasheetContact Us

A Configurable Platform

The COBRA Cure FX series has been designed as a configurable platform and allows a large degree of customization to suit your needs including customized mechanics, electronics, and optics for specific application requirements.

Custom UV LED Solutions

ProPhotonix can work with you to design the optimum UV LED Curing system from the ground up. Our multidisciplinary team of industry experts is adept at understanding all aspects of the application requirements and designing a solution to meet your needs.

Unique Expertise

More than 25 years’ experience delivering custom solutions for OEMs and 15 years’ providing UV LED solutions, allow our team to provide unique expertise to maximize the performance of your system deliver a competitive advantage.
