Tunable, MultiSpectral LED Line Light with up to 12 different wavelengths

COBRA™ MultiSpec multispectral LED line light has been designed to deliver tunable multispectral light allowing you to optimize image acquisition. Offering discrete control of up to twelve different wavelengths from 365nm to 1650nm via an intuitive graphical user interface, you can maximize contrast by choosing the optimum spectral profile and providing more intensity at specific wavelengths to suit your application needs.

COBRA MultiSpec delivers multispectral tunable illumination allowing users to optimize the spectrum to maximize contrast, compensate for camera sensitivity, and deliver clearer, higher resolution images for increased accuracy and speed. Precise control of the light via its user-friendly GUI allows system designers to easily fine-tune the performance of their system. Discrete control of each wavelength allows users to select the optimum wavelength balancing and relative intensities specific to the application needs.

Download DatasheetContact Us

Key Features:

  • Standard Wavelength Configurations, as well as Customized or Custom options
  • Extreme Brightness and High Uniformity
  • Compact Form Factor
  • Modular: Available in any Length up to 6 meters
  • Integrated Strobe and Ethernet Control
  • Up to Four Independent Strobe Lines
  • Input Power Monitoring and Error Detection

Key Applications:

  • Multispectral Imaging
  • Print Inspection
  • Food Sorting, Grading, and Analysis
  • Chemical and Pharmaceutical Analysis
  • Sorting of Recyclable Material

RGB-IR, RGB-White, and RGB-SWIR LED Line Lights

RGB-IR (855nm),  RGB-White (3500K), and RGB-SWIR (1150nm, 1450 nm ) COBRA MultiSpec line lights are now available as standard, offering ideal solutions for a wide variety of multispectral applications including food sorting and currency inspection. Custom lights of up to 12 wavelengths from 365nm – 1700nm can also be delivered.

Wavelengths from 365nm to 1700nm

UV, Visible & IR wavelengths are available along with a wide range of optical options to ensure the optimum illumination for your application. COBRA MultiSpec is available in wavelengths from 365nm – 1700nm and available in configurations from two to twelve wavelengths in a compact form factor.

Exceptional Strobe Capability

To enable rapid data acquisition and analysis, COBRA MultiSpec’s exceptional strobe capability allows multispectral strobe patterns to be configured, and up to four optically independent strobe lines pulsed either simultaneously or sequentially with a combined delay and response time of less than one microsecond (1μs).

New COBRA MultiSpec RGB-SWIR

ProPhotonix recently launched a new standard configuration of its award-winning COBRA MultiSpec range – the COBRA MultiSpec RGB-SWIR. The new configuration has been designed to deliver high-powered RGB light (445nm, 532nm, 630nm) in combination with dedicated SWIR wavelengths (1150nm, 1450nm) within a single line light source. Through the use of Chip-on-Board technology and independent, on-board strobe capabilities; this COBRA MultiSpec RGB-SWIR offers the possibility to significantly simplify and improve the performance of your vision system.

RGB-SWIR Applications

The new multispectral line light’s RGB wavelengths have been selected to provide identification or characterization in the visible part of the spectrum. The SWIR wavelengths selected are well-suited to moisture detection in products such as rice or grains, as well as plastic contaminant identification in the food sorting process. SWIR wavelengths can also be used to differentiate between organic and inorganic matter both within the food sorting process and package inspection industry. To learn more about COBRA MultiSpec RGB-SWIR, download the datasheet or contact us.

Download DatasheetContact Us
  • 1

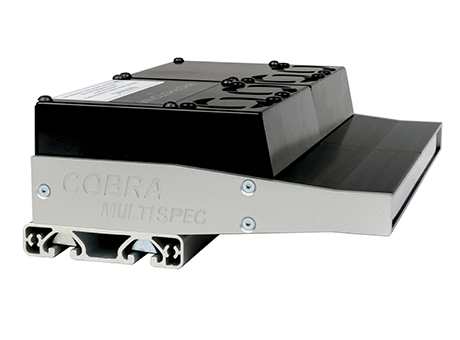

  • COBRA™ MultiSpec

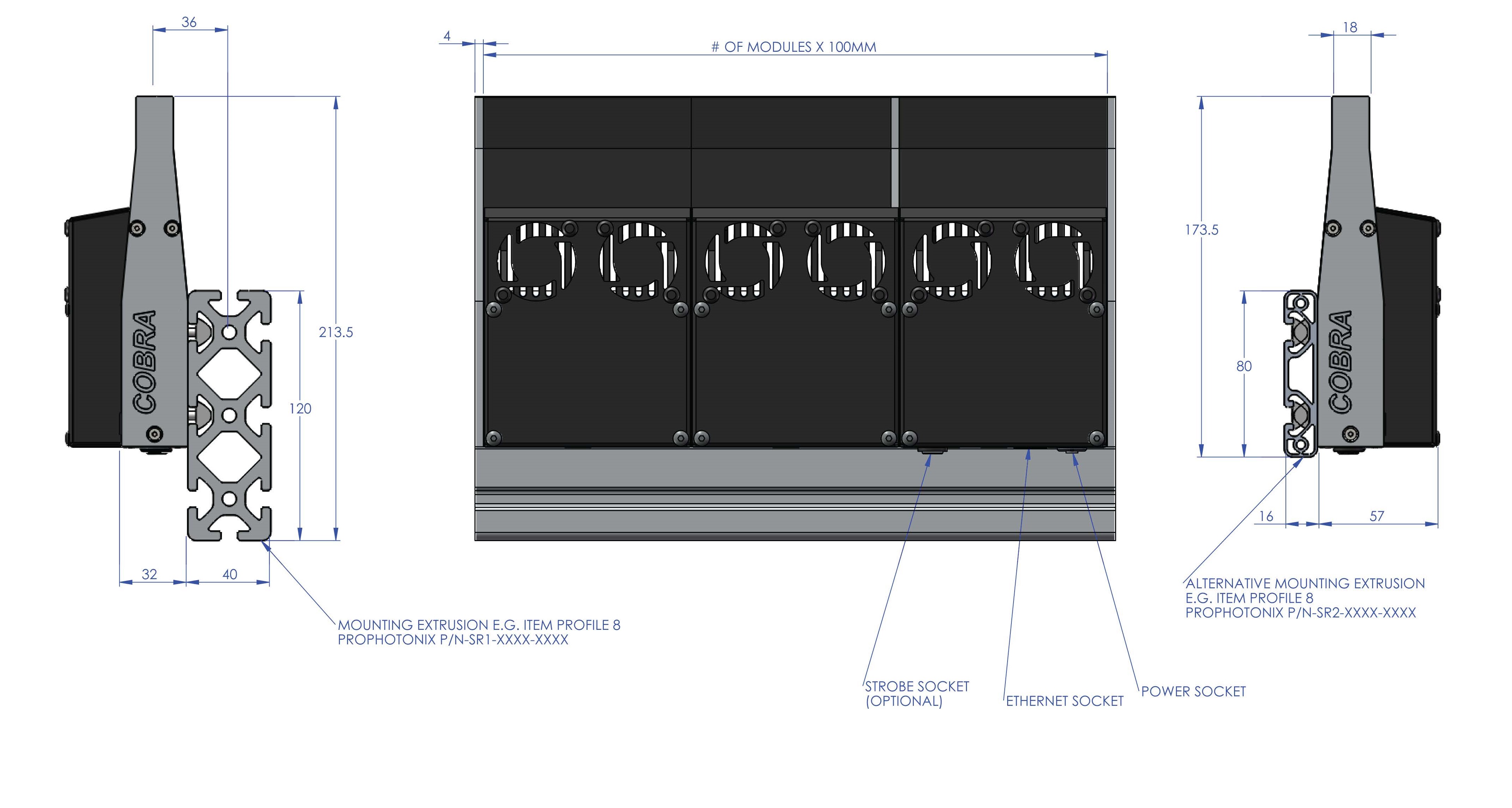

  • Dimensional drawing

Built on the established COBRA Slim and Max platform

COBRA MultiSpec is built on the established, compact COBRA Slim and COBRA Max platform and utilizes Chip-on-Board LED technology to ensure extreme brightness and excellent uniformity. In addition, COBRA MultiSpec offers field adjustable optics allowing users to select the optimum lens position for its application. COBRA MultiSpec is modular and is available in any length up to 6 meters.

Configurable to application needs

COBRA MultiSpec is configurable to your application needs. To see how COBRA MultiSpec would fit into your system, configure and download a CAD model in your chosen format. Click the button below.

Configure and Download CAD Model

COBRA™ MultiSpec

Multispectral LED Line Light

Part Number: C-AL-0RGB-0100-S-0-D0

Download CAD file
PLEASE REGISTER TO ACCESS CAD DOWNLOADS
DOWNLOAD FILE
The CAD file failed to generate. You could wait a short while and try again. Or perhaps look for a different file format.TRY AGAINSELECT NEW FORMAT

  • 1
  • COBRA™ MultiSpec
  • Dimensional drawing

Please wait while data loads…


Your CAD file is being generated.

This process usually takes less than 1 minute.

COBRA MultiSpec Customized to Your Application Needs

If you have a requirement that is not met by the standard COBRA MultiSpec, ProPhotonix can customize the product to meet your application needs. Example customizations include:

  • Optical customizations: diffusers, polarizers, or custom lenses
  • Electronic customizations: strobable and CW electronics
  • Mechanical customizations: connectors, extrusions, mounting plates, cable lengths, and cable types (to suit cleanroom environments, for example.)

To see how we can work with you to customize your COBRA MultiSpec, contact us.

Custom Multispectral Lights

If your application requires a custom multispectral light, ProPhotonix can partner with you to develop a light that meets every aspect of your specification. With more than two decades of experience in designing and manufacturing multispectral lights and an in-house team of Optical, Mechanical, and Electronic engineers, ProPhotonix is well-placed to support you in developing a custom multispectral light for your application. Learn more on our Custom LED Solutions page or Contact Us.
