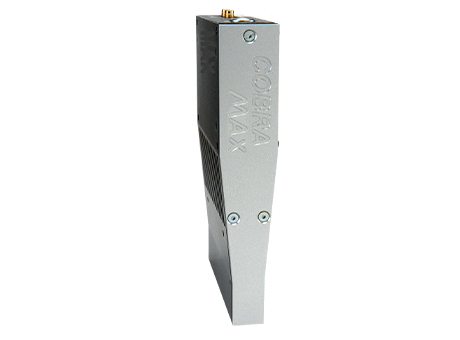

Extreme Brightness and Reliability for Line Scan Applications

COBRA™ Max is now up to 30% brighter, delivering superior brightness (up to 3120kLux) and excellent uniformity for your line scan application. When combined with COBRA’s exceptional strobe capability, this innovative line light can deliver almost 16 million Lux. A unique optical design delivers extreme brightness while retaining the compact design of our established COBRA Slim series.

Download the DatasheetContact Us

Key Features:

  • Now up to 30% brighter
  • Delivers extreme intensity, up to 3120kLux
  • Available in any length up to 6m
  • Built on an established platform with a slim and compact design
  • Unique design featuring field adjustable focusing distance and diffusers
  • Available in COBRA™ Slim and COBRA Flex form factors
  • Wavelengths from 365 – 1500nm

Key Applications:

  • Solar Cell Inspection
  • Foil, Paper and Plastic film inspection
  • PCB inspection
  • Glass inspection
  • Semiconductor inspection
  • Flat Panel Display inspection

Enhanced Chip-on-Board Technology

ProPhotonix has utilized its optical and Chip-on-Board LED expertise to design an optically enhanced version of the established COBRA Slim Series. The COBRA Max delivers up to 3120kLux continuous wave from the same slim and compact form factor.

Configurable to application needs

COBRA Max LED line light is configurable to your application needs. To see how COBRA Max would fit into your system, configure and download a CAD model in your chosen format. Click the button below.

Configure and Download CAD Model


LED Line Light

Part Number: C-IL-0365-0100-M-0-D0

Download CAD file
The CAD file failed to generate. You could wait a short while and try again. Or perhaps look for a different file format.TRY AGAINSELECT NEW FORMAT

Please wait while data loads…

Your CAD file is being generated.

This process usually takes less than 1 minute.

Extreme Brightness and Excellent Uniformity

COBRA Max utilizes Chip-on-Board LED technology in combination with expert optical design to ensure extreme brightness and excellent uniformity. A wide range of wavelengths are available from UV to Visible and IR.

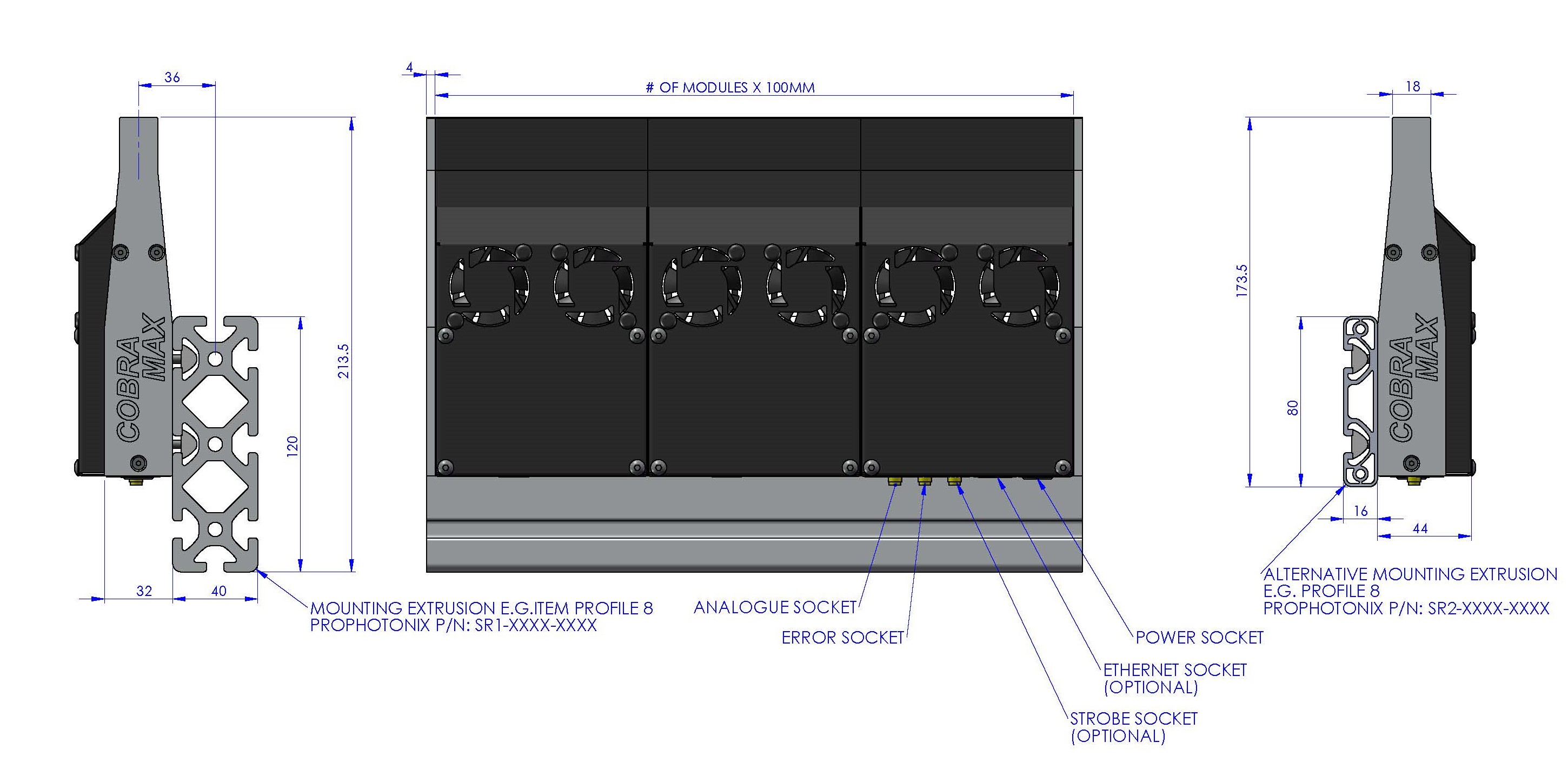

COBRA Max Design Features

Like COBRA Slim, COBRA Max offers field adjustable optics allowing you to adjust line width and intensity selecting the optimum lens position for your application. For applications requiring longer LED line lights, COBRA™ Max is modular and is available in any length up to 6 meters. Where space restrictions are an issue, COBRA™ Max is also available in the COBRA™ Flex configuration. This innovative design houses the control electronics separately for a more compact and flexible light.


Download the DatasheetContact Us

COBRA Max Customized to Your Application Needs

If you have a requirement that is not met by the standard COBRA Max, ProPhotonix can customize the product to meet your application needs. Example customizations include:

  • Optical customizations: diffusers, polarizers, or custom lenses
  • Electronic customizations: strobable and CW electronics
  • Mechanical customizations: connectors, extrusions, mounting plates, cable lengths, and cable types (to suit cleanroom environments, for example.)

To see how we can work with you to customize your COBRA Max, contact us.

Custom LED Line Lights

If your application requires a custom LED line light light, ProPhotonix can partner with you to develop a light that meets every aspect of your specification. With more than two decades of experience in designing and manufacturing LED line lights and an in-house team of Optical, Mechanical, and Electronic engineers, ProPhotonix is well-placed to support you in developing a custom LED line light for your application. Learn more on our Custom LED Solutions page or Contact Us.

Learn moreContact Us

Need help to optimize for your application?

For comprehensive technical support. Talk to us.

Contact UsContact Us

Bernhard Russell

Inside Sales

Andrea Gregorio

Inside Sales

A Complete Solution Provider

Configure or customize your product to your application requirements.  Our experienced multidisciplinary team will work within your specification, timescales, and budget.

25 Years’ Pioneering LED Technology

For more than 25 years, we have pushed the boundaries to optimize LED technology delivering high-performance, reliable, LED solutions maximizing system performance.

A Partnership Approach

We work in partnership with our customers supporting them through specification to completion and providing responsive, knowledgeable support.

Other Products in the Range:

  • COBRA Slim

    A compact, extremely bright & uniform LED line light with a modular design. Can be built to any length. Up to 1500 kLux of uniform light (CW).

    Learn More »
  • COBRA Flex

    The brightness and uniformity of the COBRA Slim Series in a flexible form factor. Ideal for applications where space is restricted.

    Learn More »

    Provides uniform multispectral light. Available with any 3 wavelengths.

    Learn More »
  • COBRA MultiSpec

    Offering up to 12 wavelengths in a compact form factor.

    Learn More »
