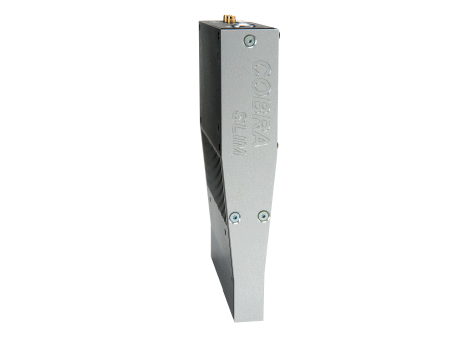

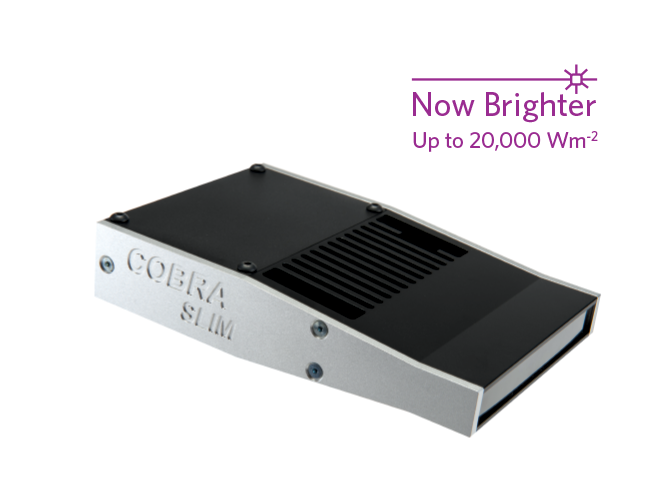

Cobra Slim LED Line Light

Compact LED illuminator, extremely bright and modular design

COBRA Slim LED Line Light utilizes the latest in Chip-on-Board LED technology to deliver extreme brightness and excellent uniformity in any wavelength. This powerful LED illuminator is ideally suited to the requirements of high-speed line scan and web inspection.

Download DatasheetContact Us

Key Features:

  • Slim and compact design
  • Available in any length up to 5m
  • Wavelengths from 365 – 1500nm
  • Extreme brightness and uniformity due to higher chip density
  • Field Adjustable lens and diffuser
  • Integrated Driver and Control Software
  • Automatic protection, overdriven strobing and external control modes
  • Optimized for maximum lifetime

Key Applications:

  • Solar Cell inspection
  • Foil, Paper and Plastic film inspection
  • PCB inspection
  • Glass inspection
  • Semiconductor inspection
  • Flat Panel Display inspection

A Unique, Established Platform

The COBRA Slim offers all the advantages of an LED solution in a uniquely compact form factor. An established platform, COBRA Slim has operated successfully in the field for more than ten years.

Configurable to Application Needs

COBRA Slim is configurable to your application needs. To see how COBRA Slim would fit into your system, configure and download a CAD model in your chosen format. Click the button below.

Configure and Download CAD Model


Linescan Illumination

Part Number: C-IL-0365-0100-S-0-D0

Download CAD file
The CAD file failed to generate. You could wait a short while and try again. Or perhaps look for a different file format.TRY AGAINSELECT NEW FORMAT

Please wait while data loads…

Your CAD file is being generated.

This process usually takes less than 1 minute.

Cobra Slim LED Line Light by Prophotonix

Crystal Clear Line Scan Images

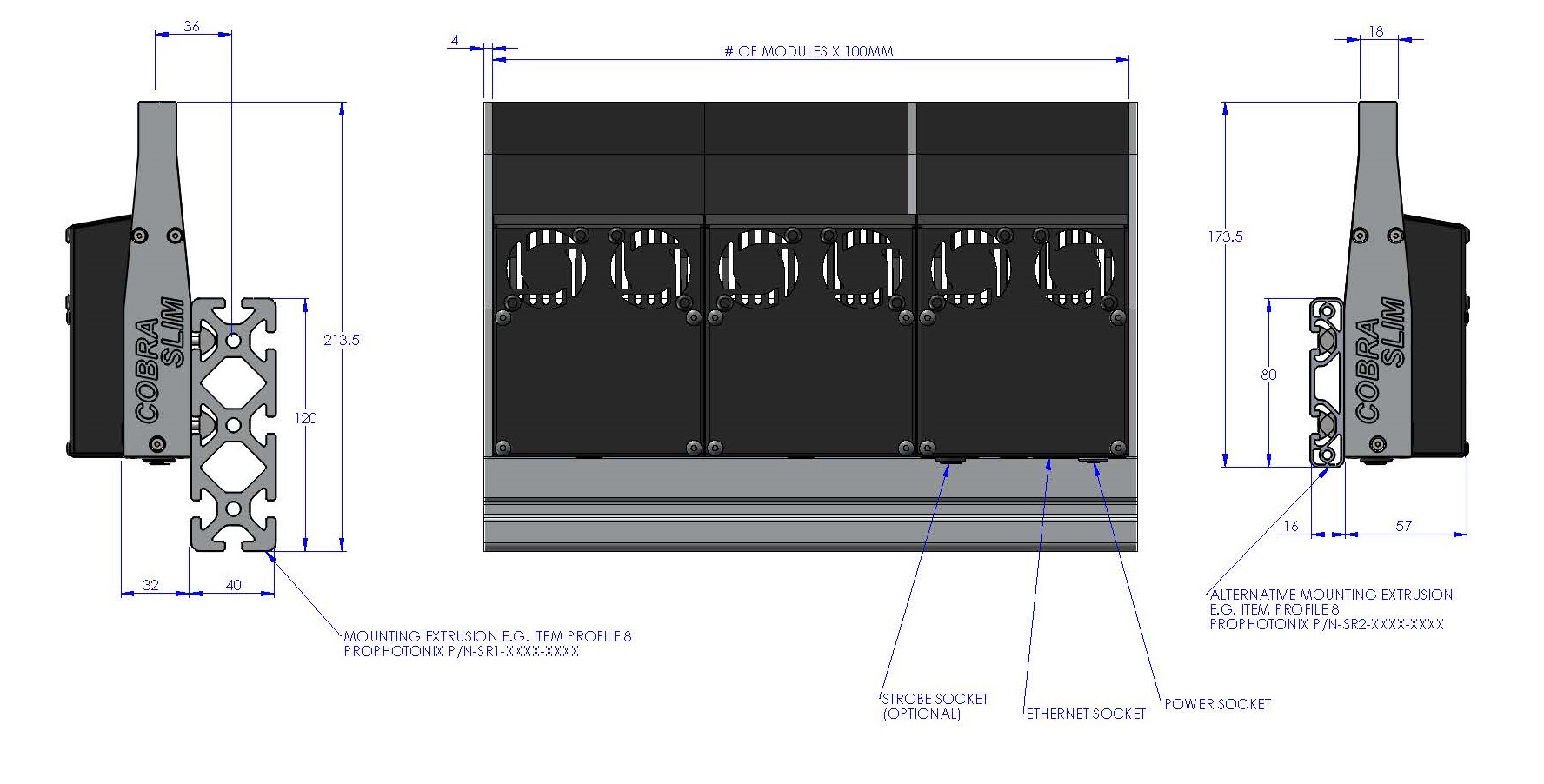

COBRA Slim’s compact design is modular and is available in any length up to 5 meters. This extremely bright and uniform LED Line Light can be further optimized in the field for specific applications through its unique field adjustable lens allowing you to select the optimum intensity and line width for your application.


COBRA™ Slim is available in wavelengths from 365 – 1500nm. The new COBRA RGB and COBRA MultiSpec take full advantage of COBRA Slim’s Chip-on-Board LED array, incorporating up to 12 individual wavelengths in a single unit.

Strobing & Ethernet Control

COBRA Slim is offered with an optional strobing function delivering up to 5 times the intensity. Ethernet control is also available as an option.

Download DatasheetContact Us

Need help to optimize for your application?

For comprehensive technical support. Talk to us.

Contact UsContact Us

Bernhard Russell

Inside Sales

Andrea Gregorio

Inside Sales

A Complete Solution Provider

Configure or customize your product to your application requirements.  Our experienced multidisciplinary team will work within your specification, timescales, and budget.

25 Years’ Pioneering LED Technology

For more than 25 years, we have pushed the boundaries to optimize LED technology delivering high-performance, reliable, LED solutions maximizing system performance.

A Partnership Approach

We work in partnership with our customers supporting them through specification to completion and providing responsive, knowledgeable support.

Other Products in the Range:

  • COBRA Max

    Extremely uniform line light delivers up to 3120kLux without strobing in the same compact, modular design as COBRA Slim.

    Learn More »
  • COBRA Flex

    The brightness and uniformity of the COBRA Slim Series in a flexible form factor. Ideal for applications where space is restricted.

    Learn More »

    Provides uniform multispectral light. Available with any 3 wavelengths.

    Learn More »
