Compact, High-Intensity UV LED Curing System delivering up to 7.2W/cm2

Designed to maximize intensity and dose, COBRA Cure FX1 Max offers up to 20% higher intensity than the COBRA Cure FX1 from the same compact form factor.

Download the DatasheetContact Us

Key Features

  • Compact, Fan-Cooled, UV LED Curing System
  • Delivers Intensities of up to 7.2W/cm2
  • Provides a Maximum Dose of 7.8 J/cm2 at 2mm
  • Field replaceable window option
  • Linear Intensity Control Options
  • UL, CE and IEC certified

Key Applications

  • UV Curing of :
    • Inks
    • Coatings
    • Adhesives
  • 3D Printing

Compact Form Factor + High Intensity & Dose

With COBRA Cure FX1 Max, ProPhotonix has utilized its expertise in Chip-on-Board LED array design and packaging to deliver the optimum solution for applications where space is restricted but higher intensity and dose levels are also required. COBRA Cure FX1 Max delivers intensities up to 7.2W/cm² and a factory set dose of up to 7.8J/cm².

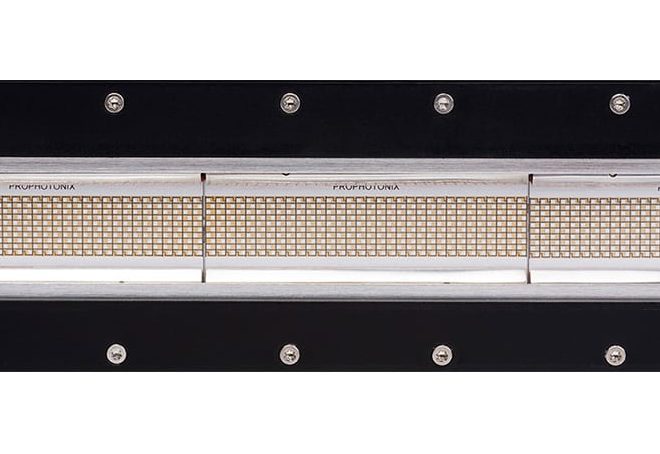

In-house LED Light Engine Design & Manufacturing

ProPhotonix builds the light engine used to power the COBRA Cure FX series in-house and has engineered each step of the design and manufacturing process to ensure that intensity, dose, as well as lifetime, are maximized in the COBRA Cure FX1 Max.

The COBRA Cure FX1 Max is configurable to your application needs. To configure and download your COBRA Cure FX1 Max CAD model, click the button below.

Configure and Download CAD Model

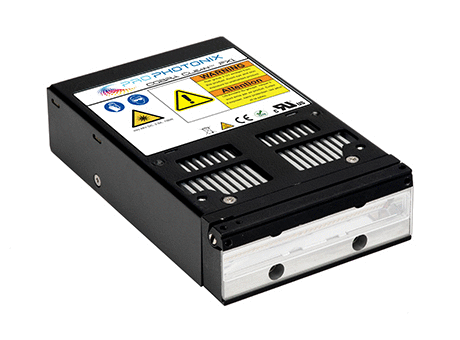

COBRA Cure™ FX1 Max

UV LED Curing System

Part Number: FX1-R-M-0077-405-D4-S-A

Download CAD file
The CAD file failed to generate. You could wait a short while and try again. Or perhaps look for a different file format.TRY AGAINSELECT NEW FORMAT


Please wait while data loads…


Your CAD file is being generated.

This process usually takes less than 1 minute.

COBRA Cure Mini - UV LED Curing System - Prophotonix

All the benefits of a UV LED Curing System

Built on the COBRA Cure FX platform, this latest innovation offers all the benefits of a UV LED Curing System: improved lifetimes, reduced maintenance costs, energy savings and with no ozone, offers a more sustainable solution than traditional technologies.

COBRA Cure FX1 Max offers an ideal solution for UV curing of inks, coatings and adhesives as well as 3D printing applications.

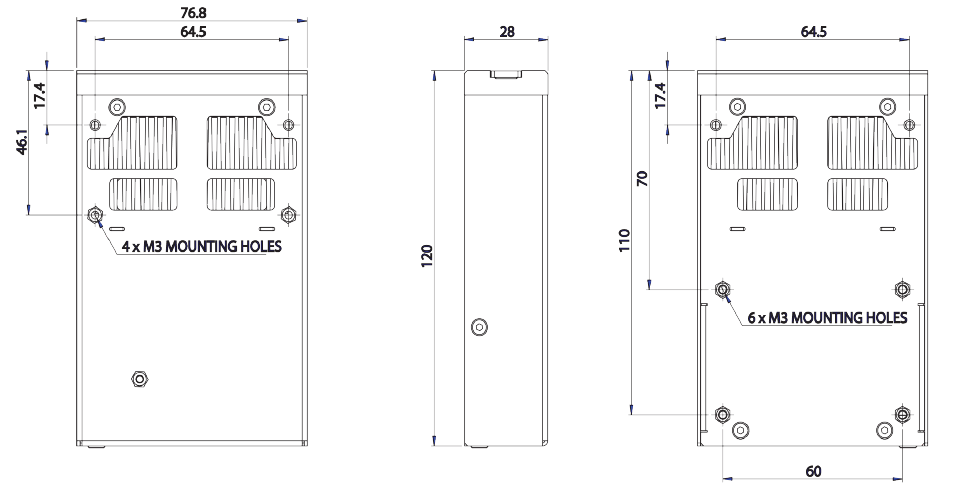

The COBRA Cure FX Series has been designed with multiple mounting options allowing the lamps to be set to the optimum working distance for the application. The COBRA Cure FX1 has been independently IEC, CE and UL certified.

Download the DatasheetContact Us

Market Leading Product Performance

UV LED Curing Systems are designed and built to deliver maximum performance throughout the lifetime of the products.

Flexibility to Adapt to Your Needs

We take a long-term view of customer relationships supporting you from concept to completion as well as with day to day business needs.

A Complete Solution Provider

We take a long-term view of customer relationships supporting you from concept to completion as well as with day to day business needs.

Need help to optimize for your application?

For comprehensive technical support. Talk to us.

Contact UsContact Us

Bernhard Russell

Inside Sales

Andrea Gregorio

Inside Sales

Other Products in the Range

  • COBRA Cure FX1

    5.4W/cm² Compact, UV LED curing system offering a stable, reliable cure over a long lifetime, ideal for printing and 3D printing applications.

    View Details
  • New COBRA Cure Mini

    6W/cm² Compact, Light form factor UV LED curing system offers a cost-effective solution for high-speed single and multi-pass printers.

    View Details
  • COBRA Cure FX2

    Compact, stackable, UV LED Curing System offering up to 8.4 W/cm2 or 17.5 J/cm2

    View Details
  • COBRA CURE FX3

    20W/cm² UV LED curing system offers industry-leading intensity and dose values and edge to edge illumination, ideal for UV curing of inks, coatings and adhesives.

    View Details
