Compact 650nm Micro Laser Diode Collimator

ProPhotonix offers a 650nm micro laser diode collimator with an elliptical output beam of 8.0 x 6.5mm at 5 meters, high bore sighting accuracy of <0.2°, beam divergence of 1mrad max, collimated output power of 3.5mW and pointing stability of <0.2mrad/°C.

With a 4.5mm diameter, it has been designed specifically as a complete low-cost, high-volume system for OEM use in applications requiring high laser beam alignment accuracy where size is a critical factor.

Download DatasheetContact Us

Key Features:

  • Visible light ʎ = 650nm
  • Collimated output power 3.5mW
  • High boresight accuracy 0.2°
  • Elliptical output beam
  • Ø 4.5mm housing
  • High quality glass lens
  • Factory-set collimated output

Key Applications:

  • Industrial and automotive alignment
  • Positioning and sensing
  • Bar code scanning
  • Process control
  • Machine vision
  • Targeting applications


High Laser Beam Alignment Accuracy in a Compact Size

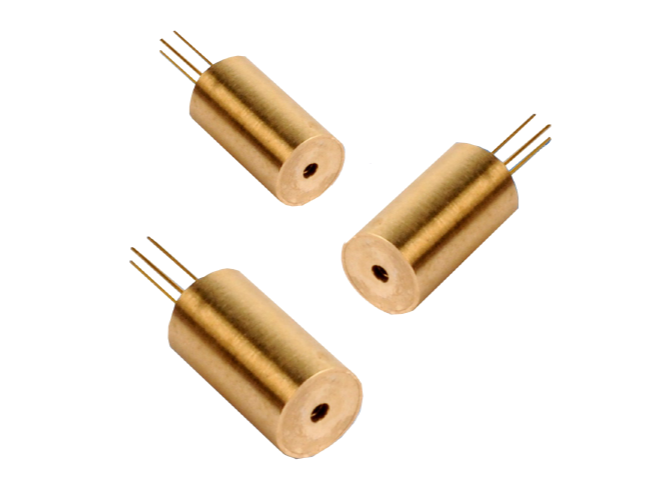

ProPhotonix’ Micro Laser Diode Collimators consist of a brass housing, a laser diode and a high-quality glass collimating lens in a lightweight 4.5mm cylindrical package. Direct access to the laser diode and photodiode connections provides maximum flexibility in the configuration of the electrical interface.

Micro Laser Diode Collimators are compact in size and will integrate easily into your existing systems.
